Tekinimo staklės Bernardo Standard 165 D su triašiu skaitmeniniu ekranu

Entire range of equipment: 3-axis digital readout, LED machine lamp, machine stand and many more
Practical machine with leadscrew and feed rod for thread cutting and automatic feed
Removable bridge allows processing of workpieces of large diameter
Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
Clearly arranged speed and feed control settings, smooth operation and accurate control
Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
Hardened and polished main spindle, saturated in oil

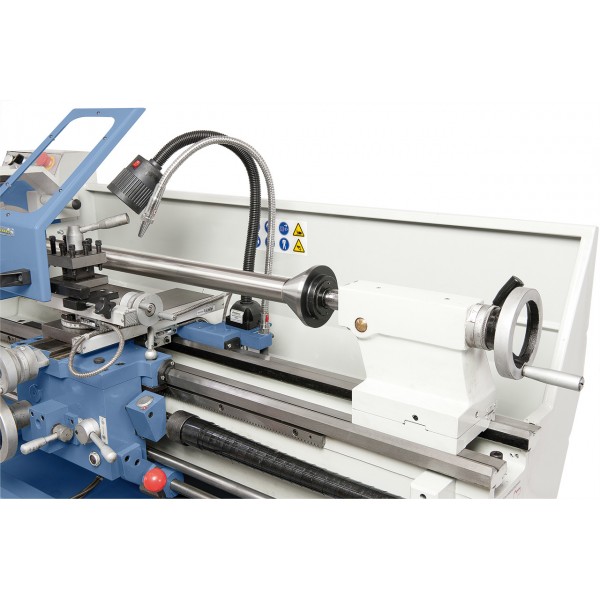

Removable tailstock for taper turning, handwheel features adjustable fine scale (0.04mm)
Extractable chip tray minimizes space requirements

Product Specifications

Distance between centers 1000 mm

Center height 175 mm

Swing over bed 350 mm

Swing over gap* 450 mm

Swing over cross slide 190 mm

Bed width 180 mm

Spindle bore 40 mm

Spindle nose fixture DIN 55029, D1-4

Speed range (8) 70 - 2000 rpm

Longitudinal feed (40) 0,053 - 1,29 mm/rev

Cross feed (40) 0,013 - 0,31 mm/rev

Metric thread (32) 0,4 - 7 mm

Inch thread (36) 4 - 60 threads/1“

Travel of tailstock sleeve 110 mm

Taper of tailstock sleeve MT 3

Motor power output S1 100% 1,5 kW (400 V)

Motor power input S6 40% 2,2 kW (400 V)

Machine dimension (W x D x H) 1730 x 700 x 1340 mm

Weight approx. 514 kg

* Removable bed length: 220 mm

Delivery Contents

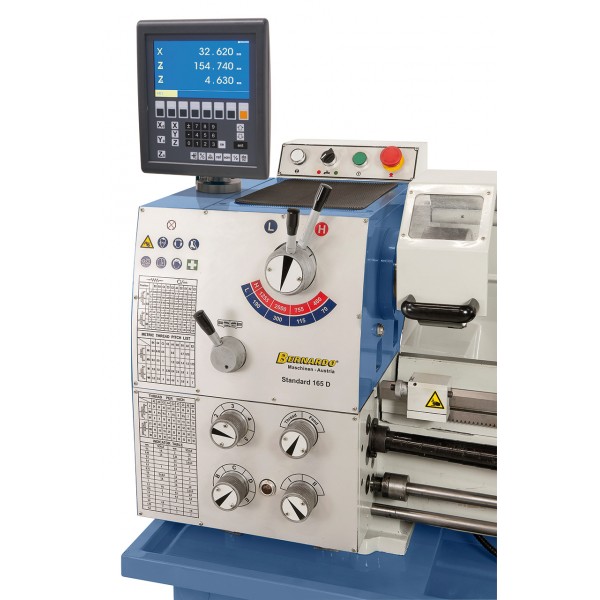

3-axis digital readout ES-12 V with LCD-display
3-jaw chuck BC3-160 mm / D4
Independent chuck 200 mm / D4, according DIN 55029
Steady rest – Passage up to 60 mm
Follow rest – Passage up to 60 mm
Face plate 250 mm
4-way tool post holder
Protective device at tool holder
Safety clutch
Micrometer longitudinal fence
Coolant device
Extractable chip tray
Motor with magnetic brake according CE
Foot pedal with brake function according CE
Splash guard
Thread dial
LED machine light
Morse taper drill sleeve

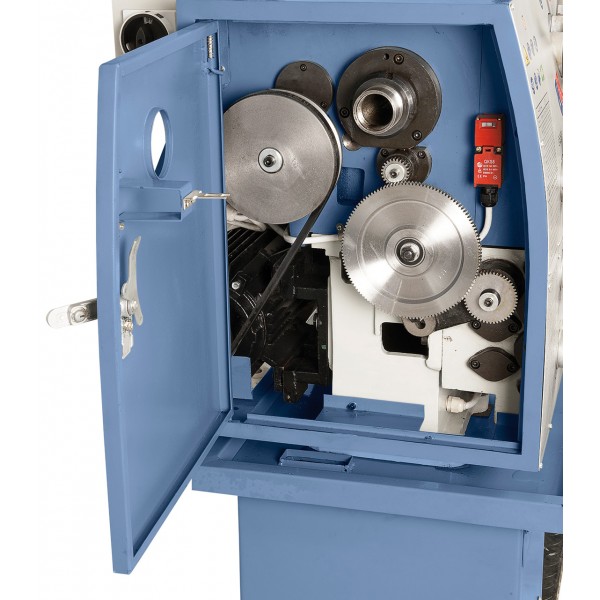

Change gears
2 dead centers
Stand
Tools
