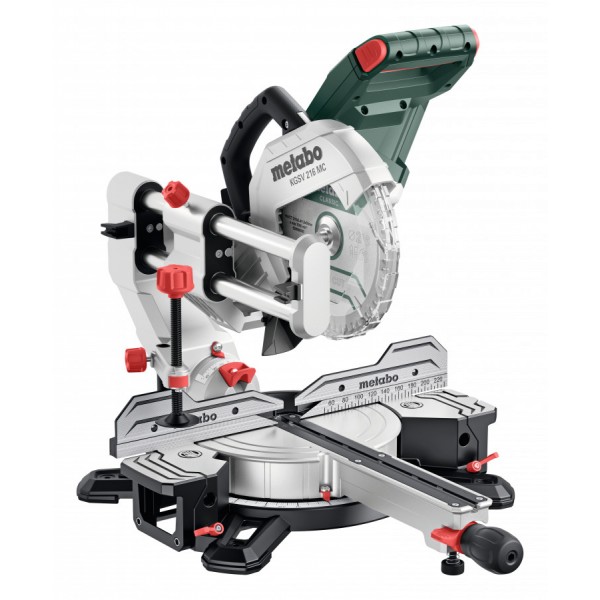

Skersinio pjovimo staklės Metabo KGSV 216 MC sūkių reguliavimas

Dimensions: 705 x 480 x 555 mm
Support surface: 345 x 730 mm
Maximum cutting width 90°/45°: 305 / 215 mm
Maximum cutting depth at 90°/45°: 70 / 40 mm
Cutting capacity 90°/90°: 305 x 70 mm
Cutting capacity 45°/45°: 215 x 40 mm
Turntable setting left/right: 50 / 50 °

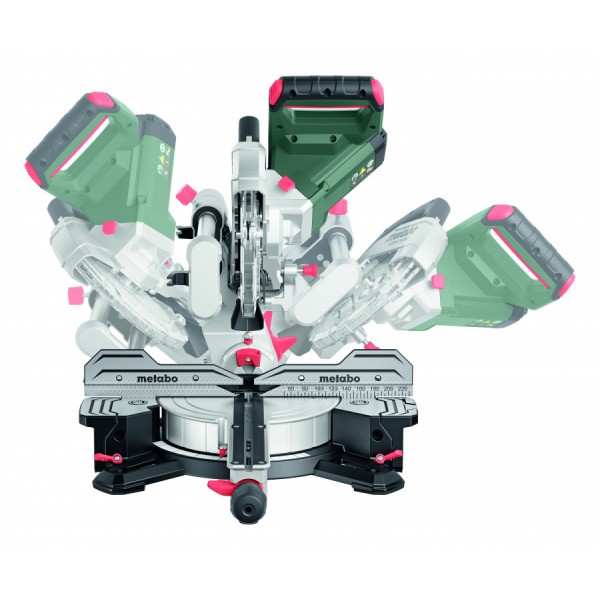

Saw blade tilt left/right: 47 / 47 °
Saw blade: 216 x 30 mm
Sound pressure level: 87 dB(A)
Sound power level (LwA): 100 dB(A)
Uncertainty of measurement K: 3 dB(A)
Rated input power S1 100%: 1200 W
Rated input power S6 20%: 1500 W
No-load speed: 2200 - 5300 rpm
Speed at rated load: 4200 rpm
Cutting speed: 25 - 60 m/s
Weight: 15.4 kg
Cable length: 2 m

Versatile mitre saw with maximum equipment: variable speed, compact sliding function, saw head inclination on both sides and much more
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED

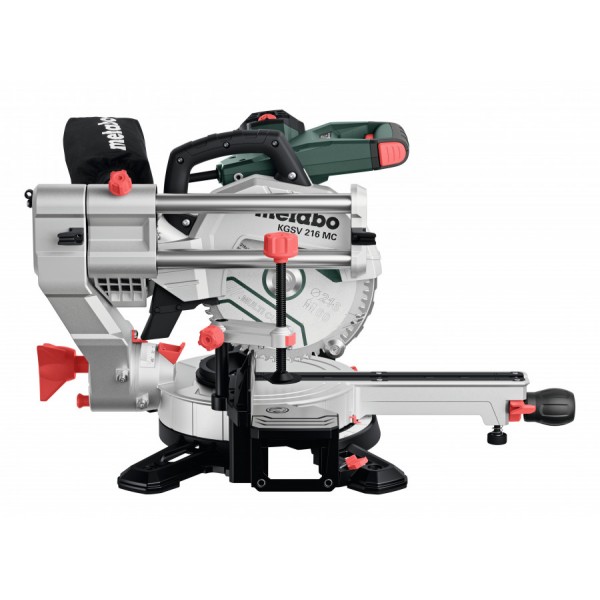

Compactly designed sliding function with no space required behind the saw
Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
Variable speed for an extended range of applications, e.g. for sawing aluminum profiles and plastics
Effective dust extraction via integrated dust scoop
Soft start for long service life of motor and drive
Fast and precise setting of common angles using stop points

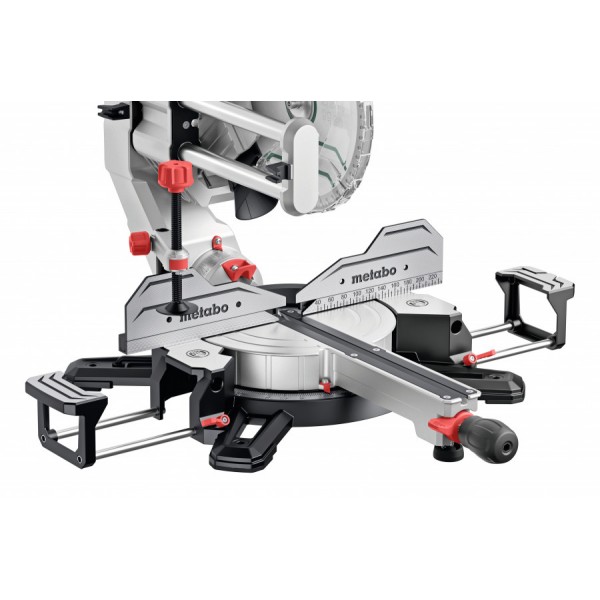

Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves

Scope of delivery
Carbide saw blade (60 teeth), 2 Table length extensions, Length Guide, Material clamp, Tool for saw blade change, Cable winder, Chip Collection Bag
