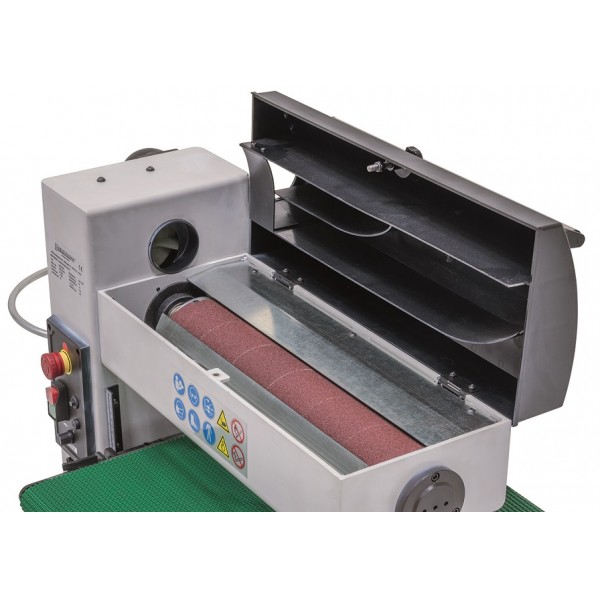

Cilindrinės šlifavimo staklės Bernardo ZSM 460 DC / 230 V

The ZSM 460 DC cylinder sanding machine is suitable for sanding works up to a width of 920 mm. The feed of the conveyor belt can be adjusted steplessly to the workpiece to achieve optimal grinding results. In addition, this model is equipped with an integrated extraction system.

Product Specifications

Max. sanding width 460 mm (920 mm)

Min. sanding length 60 mm

Workpiece thickness, min. / max. 3 – 115 mm

Table size (L x W) 470 x 425 mm

Working height 915 mm

Sanding roller Ø 100 x 465 mm

Feed stepless 0,5 – 4 m/min

Speed 1420 rpm

Dust extraction outlet 75 mm

Motor power 1,8 KW (2,4 HP)

Voltage 230 V

Machine dimension (W x D x H) 1180 x 560 x 1250 mm

Weight approx. 118 kg

Sanding belt grit 80
Integrated dust extraction
Stand with rollers
