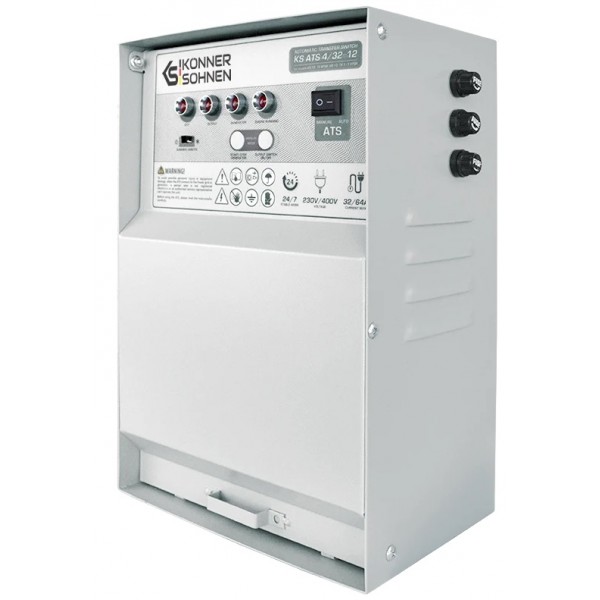

Automatinis Perjungiklis ATS Block 4-32/12

The Könner & Söhnen KS ATS 4/32-12 Automatic Transfer Switch (ATS) seamlessly ensures your power needs are met by automatically starting your generator and managing the load during a main power outage.

Gasoline and diesel generators with an electric starter are equipped with a universal 5-pin connector for an automatic transfer switch unit (ATS input).
Its Programmable Logic Controller (PLC) enhances flexibility, allowing for customized settings including:

Switching between automatic and manual operations
Setting the engine start time post-outage
Adjusting the engine warm-up duration before the load connection
Managing the starter's operation duration
Monitoring engine performance
Charging the battery while the generator is not in use

This ATS unit simplifies maintaining continuous power, providing peace of mind and operational efficiency.
Suitable for models- KS-12-1E-ATSR and KS-12-1E-1/3-ATSR

Technical specification

Voltage, V 230/400
Battery Voltage DC8.0-18V
Power (230V), kW 14
Power 400V, kW 21
Current (max) 230 V, A 64
Current (max) 400 V, A 32
Maximum Battery Charging Current from the Built-in Supply                                               2A
Peak Power Demand, W 10
Frequency, Hz 50
Control Cable Length, m 3
Insulation Class AC1.5KV / 1min 1mA
Weight, kg 5.5
Dimensions (LxWxH), mm 220 х 150 х 370
IP Protection Class IP41
