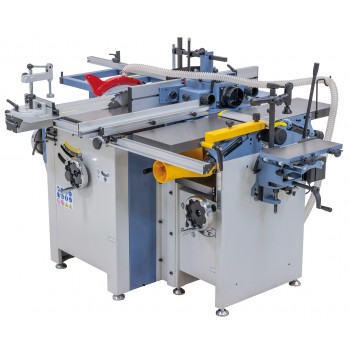

Universalios daugiafunkcinės staklės Bernardo CU 260 FS - 1600 / 400 V

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Optional with mortising unit (16 mm capacity) available
Quick and easy readout of spindle speed on digital display
Solid moulding fence features finely adjustable aluminium fence rails
Machine body consists of torsion-free combination of steel and grey cast iron
Smooth running, precise sliding table features hardened, prism-shaped guides

Planer

Planing width 250 mm

Table length 1090 mm

Table height 865 mm

Shaft rotation speed 4000 rpm

TCT-blades 24 pcs.

Planer shaft diameter 75 mm

Planer fence 720 x 130 mm

Fence tiltable 90° bis 45°

Max. cutting depth 5 mm

Motor power output S1 100% 2,0 kW (2,7 HP)

Motor power input S6 40% 2,8 kW (2,5 HP)

Thicknesser

Table length 600 mm

Working width 250 mm

Working thickness, min/max. 5 - 185 mm

Max. cutting depth 1,8 mm

Feed speed 8 m/min

Dust extraction outlet 100 mm

Mortising unit (optional available)

Table size 370 x 150 mm

Westcott drill chuck 0 - 16 mm

Max. drill depth 90 mm

Drill width 160 mm

Height adjustment 85 mm

Circular saw

Table size 900 x 345 mm

Table height 865 mm

Square table 600 x 460

Sliding table 1600 x 240 mm

Cutting length 1600 mm

Max. sawblade diameter 250 x 30 mm

Max. cutting height 90° / 45° 80 / 60 mm

Cutting width on rip fence 910 mm

Speed main sawblade 4750 rpm

Dust extraction outlet 100 mm

Motor power output S1 100% 2,2 kW (1,5 HP)

Motor power input S6 40% 3,0 kW (4,0 HP)

Spindle moulder

Spindle diameter 30 mm

Height adjustment 110 mm

Table opening 170 mm

Working length of spindle 90 mm

Max. tool diameter

- at profiling 150 mm

- at tenoning 150 mm

Spindle speed 1400 / 4000 / 6000 / 8000 rpm

Motor power output S1 100% 1,5 kW (2,0 HP)

Motor power input S6 40% 2,1 kW (2,8 HP)

Voltage 400 V

Machine dimension (W x D x H) 1600 x 2340 x 1150 mm

Spiral cutter head with 24 pcs. TCT-blades
Replacement TCT-blades (5 pcs.)
Planer fence
Downholder
Mitre fence
Moulding fence
Protective cover with dust extraction outlet
Connector tube with Y-piece
Aluminium fence with stop
Sawblade 250 x 3,2 x 30 mm / 24T
Digital speed indication of moulding spindle
Push stick
Tools
