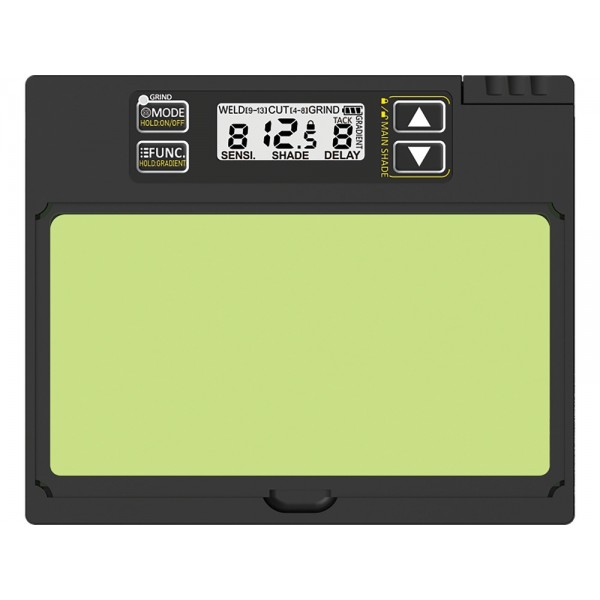

Suvirinimo skydelis ASTRO DIGITAL TRUE COLOR

Standard EN 166:2001, EN 175:1997, EN ISO 16321-1:2021
Optical properties 1 / 1 / 1 / 1
Dark state 5-8, 9-13 DIN
Light state 4 DIN
Filter type auto-darkening TRUE COLOR
Filter size 100x90 mm
Protective lens size 270x140 mm
Field of view 100x53 mm
Helmet material PA6
Lens material PC
4-point suspension yes
Number of sensors arc 4
Filter test yes
Functions smooth tone transition (TRS), tack mode, grinding, cutting, welding
Darkness control yes, external, smooth
Darkening time 0.1-0.4 ms
Brightening time 0.05-2 s
Delay control yes, external, smooth
Automatic sensitivity control yes
Automatic switch on/off yes UV/IR radiation resistance yes, DIN 16
Power supply solar cell, battery
Battery type 1x3V; CR2032
Low battery indicator yes
Operating temperature range -5 ~ +55 ˚C
Storage temperature -20 ~ +70 ˚C
Application welding
Welding method MMA, MIG, MAG, TIG

Welding helmet with digitally controlled true color auto-darkening filter. Allows to observe the welding arc in real colors. It has additional functions such as TRS or tack mode and guarantees maintaining precise settings even after many years of use.

It has 9 levels of darkness and sensitivity to the intensity of the light source. Allows to change the switching time from dark to light in the range of 0.05 to 2 seconds.
